📊 GrafMail - Grafana Dashboard Screenshot & Delivery Tool

Automated Grafana dashboard screenshot tool for DevOps monitoring. Captures PNG/PDF reports and sends via email SMTP or SFTP. Supports Docker and air-gapped deployment..

📑 Table of Contents

Features
Architecture Overview
Project Structure
Quick Start
- Configure
- Build
- Run
- Cronjob
- Log Rotation
Delivery Modes
- SMTP_INTERNAL
- FILE_ONLY
PDF Mode
Capture Organization
No-Images Behavior
Docker Networking
Docker Resource Limits
Configuration Reference
Security Best Practices
Paramiko SSH Setup (Remote File Transfer)
Air-Gapped Deployment
Troubleshooting

Features

Dual delivery modes — SMTP_INTERNAL (email from Docker) or FILE_ONLY (save-only, external email)
HTML email with inline-embedded screenshots (Content-ID), plain-text fallback
PDF support — capture as PDF and auto-merge into a single report file
PDF email attachments with 10 MB size limit enforcement
CC / BCC support, custom subjects and bodies
Dashboard UID subfolders — organized captures in captures/{uid}/
Flexible remote copy — choose paramiko (Python SFTP) or local file copy
Retry on capture failure with configurable retry count
Per-dashboard timeout control
Docker resource limits (memory, CPU) configurable via .env
Multi-environment support — run different dashboards with different .env files via cronjob
Air-gapped deployment — Docker image save/load, offline Chromium
Automatic file cleanup — recursive, with empty directory removal

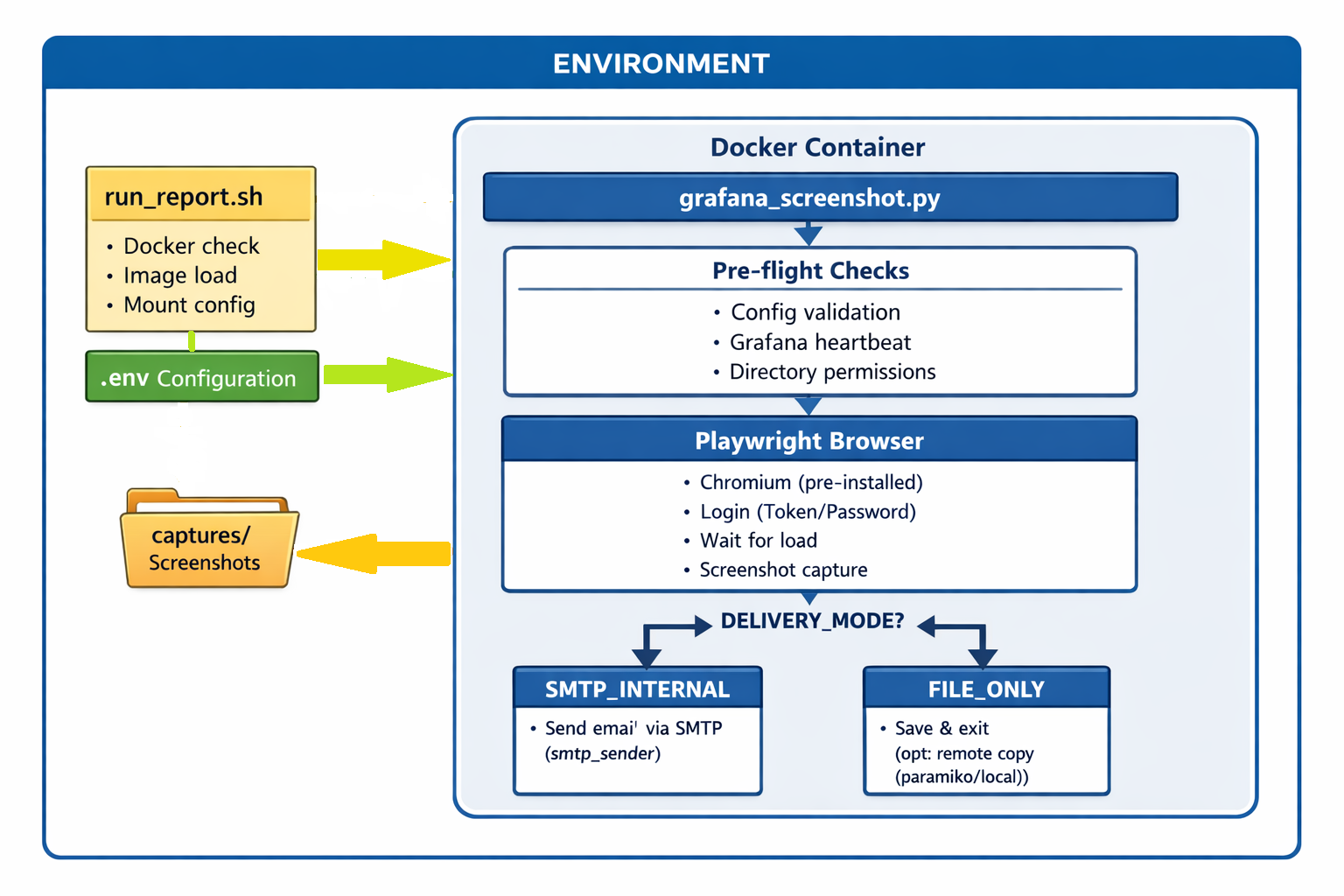

Architecture Overview

┌─────────────────────────────────────────────────────────────────────────────┐
│                               ENVIRONMENT                                   │
├─────────────────────────────────────────────────────────────────────────────┤
│                                                                             │
│  ┌─────────────────┐     ┌─────────────────────────────────────────────┐    │
│  │  run_report.sh  │     │              Docker Container               │    │
│  │                 │────▶│  ┌───────────────────────────────────────┐  │    │
│  │  - Docker check │     │  │         grafana_screenshot.py         │  │    │
│  │  - Image load   │     │  │                                       │  │    │
│  │  - Mount config │     │  │  ┌─────────────────────────────────┐  │  │    │
│  └─────────────────┘     │  │  │      Pre-flight Checks          │  │  │    │
│                          │  │  │  - Config validation            │  │  │    │
│  ┌─────────────────┐     │  │  │  - Grafana heartbeat            │  │  │    │
│  │     .env        │────▶│  │  │  - Directory permissions        │  │  │    │
│  │  Configuration  │     │  │  └─────────────────────────────────┘  │  │    │
│  └─────────────────┘     │  │                  │                    │  │    │
│                          │  │                  ▼                    │  │    │
│                          │  │  ┌─────────────────────────────────┐  │  │    │
│  ┌─────────────────┐     │  │  │      Playwright Browser         │  │  │    │
│  │    captures/    │◀────│  │  │  - Chromium (pre-installed)     │  │  │    │
│  │  Screenshots    │     │  │  │  - Login (Token/Password)       │  │  │    │
│  └─────────────────┘     │  │  │  - Wait for load                │  │  │    │
│                          │  │  │  - Screenshot capture           │  │  │    │
│                          │  │  └─────────────────────────────────┘  │  │    │
│                          │  │                  │                    │  │    │
│                          │  │   ┌──────────────┴──────────────┐     │  │    │
│                          │  │   │       DELIVERY_MODE?        │     │  │    │
│                          │  │   └──────┬─────────────┬────────┘     │  │    │
│                          │  │          ▼             ▼              │  │    │
│                          │  │  ┌─────────────┐ ┌────────────────┐   │  │    │
│                          │  │  │SMTP_INTERNAL│ │   FILE_ONLY    │   │  │    │
│                          │  │  │ Send email  │ │ Save & exit    │   │  │    │
│                          │  │  │ via SMTP    │ │ (opt: remote   │   │  │    │
│                          │  │  │(smtp_sender)│ │  copy (paramiko│   │  │    │
│                          │  │  │             │ │  /local))      │   │  │    │
│                          │  │  └─────────────┘ └────────────────┘   │  │    │
│                          │  └───────────────────────────────────────┘  │    │
│                          └─────────────────────────────────────────────┘    │
│                                                                             │
└─────────────────────────────────────────────────────────────────────────────┘

grafmail-grafana-screenshot-tool —

Project Structure

When you git clone this project, initially your build setup should look like this:

grafmail/
├── grafana_screenshot.py    # Main application (capture engine + orchestration)
├── smtp_sender.py           # SMTP module (HTML email with inline images / PDF attachments)
├── requirements.txt         # Python dependencies
├── Dockerfile               # Optimized image (python:3.11-slim + Chromium only)
├── .env                     # Configuration template
├── run_report.sh            # Linux runner script
└── captures/                # Screenshot output (UID subdirectories, will be created autometically)
    └── {dashboard_uid}/

If you already have the Docker image as a .tar file (either built locally or received from elsewhere), see Air-Gapped Deployment for instructions on loading and running the project after configuring .env.

Quick Start

1. Configure

Copy .env.example and fill in your values:

cp .env.example .env_dashboard1
# Edit .env_dashboard1 with your Grafana URL, credentials, delivery mode, etc.

2. Build

docker build -t grafmail:latest .

OR to avoid mixing up cache:

docker build --no-cache -t grafmail:latest .

3. Run

./run_report.sh                                    # Default .env
./run_report.sh --env-file /path/.env_dashboard1   # Custom .env
./run_report.sh -e .env_dashboard2 --debug         # Debug mode

4. Cronjob

# Dashboard 1 — every 30 minutes
PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
5 * * * * /bin/bash /path/to/run_report.sh --env-file /path/to/.env >> /path/to/cron.log 2>&1

Test your crontab entry without waiting by simulating the cron environment manually:

env -i HOME=/home/user USER=user LOGNAME=user \
    PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin \
    /bin/bash /path/to/run_report.sh \
    --env-file /path/to/.env

Multi-Dashboard Cronjob

# Dashboard 1 — every 30 minutes
*/30 * * * * /path/to/run_report.sh --env-file /path/to/.env_dashboard1

# Dashboard 2 — every 2 hours
0 */2 * * *  /path/to/run_report.sh --env-file /path/to/.env_dashboard2

# Weekly summary — Monday 8 AM
0 8 * * 1    /path/to/run_report.sh --env-file /path/to/.env_weekly

5. Log rotation

If the cron job runs every 5 minutes, cron.log will grow large fast. Add a simple logrotate config:

sudo tee /etc/logrotate.d/grafmail << 'EOF'
/path/to/grafmail/cron.log {
    daily
    rotate 7
    compress
    missingok
    notifempty
}
EOF

Delivery Modes

`SMTP_INTERNAL`

Screenshots captured + HTML email sent from inside the Docker container.

PNG mode: Images embedded inline (Content-ID, not raw attachments)
PDF mode: PDF file sent as email attachment
Professional HTML layout with filename labels per image
Plain-text fallback for non-HTML clients
CC / BCC recipients supported
10 MB total attachment size limit — emails exceeding this limit are blocked with an error

`FILE_ONLY`

Screenshots saved to CAPTURE_DIR/{dashboard_uid}/. No email from Docker.

Optional remote copy after capture:

`REMOTE_COPY_METHOD`	Description	Requirements
`paramiko` (default)	Python SFTP library	`paramiko` pip package (included in requirements.txt)
`local`	Local filesystem copy	Destination path must be mounted into container

PDF Mode

When SCREENSHOT_FORMAT=pdf, each panel/viewport is captured as an individual PNG by Playwright. After capture, they are automatically merged into a single PDF file (one panel per page).

Merged file: grafana_{uid}_report_{timestamp}.pdf
Individual PNGs are deleted after successful merge
Requires PILLOW (included in requirements.txt)

Capture Organization

Screenshots are saved in subdirectories named by dashboard UID:

captures/
├── edzu0yqxghmgwf/
│   ├── grafana_edzu0yqxghmgwf_viewport_20260220_014800.png
│   ├── grafana_edzu0yqxghmgwf_panel_viewPanel_10_20260220_014812.png
│   └── grafana_edzu0yqxghmgwf_panel_viewPanel_14_20260220_014818.png
└── abc123xyz/
    └── grafana_abc123xyz_report_20260220_020000.pdf   ← merged PDF

File cleanup (FILE_RETENTION_DAYS) recurses into all subdirectories and removes empty folders.

No-Images Behavior

When no screenshots are captured, behavior is controlled by NO_IMAGES_ACTION:

Value	Behavior
`notify`	Send an HTML notification email (“no images captured”) — only in `SMTP_INTERNAL` mode
`skip`	Exit gracefully with code 0, no email
`fail`	Exit with code 2 (default error behavior)

Docker Networking

run_report.sh uses --network=host by default. Grafana at http://localhost:3000 works as-is.

Docker Resource Limits

Configured via .env:

DOCKER_MEMORY=1g     # Container memory limit
DOCKER_CPUS=1.5      # Container CPU limit

Configuration Reference

Grafana URL Breakdown

A typical Grafana dashboard URL looks like this:

https://<grafana-host>/d/<uid>/<slug>?<params>

Example:

https://grafana.example.com/d/abcd1234/system-metrics?orgId=1&from=now-6h&to=now

Breakdown of the parts:

/d/
Indicates that the resource is a dashboard.
<uid>
A unique identifier for the dashboard generated by Grafana.
This remains stable even if the dashboard title changes.
<slug>
A human-readable version of the dashboard title.
It improves readability but is not used for identification, so changing it will not break the link as long as the UID remains the same.
?params (query parameters)
Optional parameters that control how the dashboard is opened.

Common parameters:

orgId — Organization ID in Grafana.
from / to — Time range for the dashboard (e.g., now-6h, now).
var-<name> — Sets dashboard variables.
refresh — Auto-refresh interval (e.g., 5s, 1m).

Example with variables:

https://grafana.example.com/d/abcd1234/system-metrics?orgId=1&var-host=server01&from=now-1h&to=now

This opens the dashboard with a predefined host variable and a specific time range.

Grafana Connection

Variable	Default	Description
`GRAFANA_URL`	(required)	Grafana base URL
`GRAFANA_DASHBOARD_UID`	(required)	Dashboard UID from URL
`GRAFANA_DASHBOARD_SLUG`	(optional)	Human-readable URL slug
`GRAFANA_AUTH_METHOD`	`password`	`password` or `token`
`GRAFANA_USERNAME`		Username for password auth
`GRAFANA_PASSWORD`		Password for password auth
`GRAFANA_SERVICE_TOKEN`		Service Account Token for token auth
`GRAFANA_IGNORE_TLS_ERRORS`	`true`	Ignore TLS cert errors (set `false` for production)

Panel & Capture

Variable	Default	Description
`GRAFANA_PANEL_IDS`		Comma-separated panel IDs (e.g. `10,14` or `viewPanel:10,panelId:14`)
`GRAFANA_PANEL_ID`		Legacy single panel ID
`PANEL_PARAM_TYPE`	`viewPanel`	`viewPanel` or `panelId`
`GRAFANA_CUSTOM_PARAMS`		Additional URL params (e.g. `var-collection=events`)
`CAPTURE_VIEWPORT`	`true`	Capture full dashboard viewport
`CAPTURE_PANELS`	`true`	Capture individual panels
`PANEL_LOAD_WAIT`	`3`	Seconds between panel captures
`HIDE_SIDEBAR`	`true`	Hide Grafana sidebar via CSS injection

Screenshot Settings

Variable	Default	Description
`SCREENSHOT_WIDTH`	`1920`	Viewport width (px)
`SCREENSHOT_HEIGHT`	`1080`	Viewport height (px)
`SCREENSHOT_FORMAT`	`png`	`png` or `pdf` (PDF auto-merges multiple panels into one file)
`SCREENSHOT_FULL_PAGE`	`false`	Capture full page or viewport only
`CAPTURE_DIR`	`/app/captures`	Base capture directory (subfolders created per UID)

Dashboard Rendering

Variable	Default	Description
`DASHBOARD_TIME_FROM`	`now-24h`	Time range start
`DASHBOARD_TIME_TO`	`now`	Time range end
`DASHBOARD_THEME`	`dark`	`dark` or `light`
`DASHBOARD_KIOSK`	`true`	Kiosk mode (hide UI)
`DASHBOARD_REFRESH`		Auto-refresh interval

Delivery Mode

Variable	Default	Description
`DELIVERY_MODE`	`SMTP_INTERNAL`	`SMTP_INTERNAL` or `FILE_ONLY`

SMTP Configuration (SMTP_INTERNAL)

Variable	Default	Description
`SMTP_HOST`	(required)	SMTP server hostname/IP
`SMTP_PORT`	`587`	SMTP port
`SMTP_USER`	(optional)	SMTP username (omit for no-auth relay)
`SMTP_PASSWORD`	(optional)	SMTP password (omit for no-auth relay)
`SMTP_FROM`	(required)	Sender email address
`SMTP_TO`	(required)	Comma-separated TO recipients
`SMTP_CC`		Comma-separated CC recipients
`SMTP_BCC`		Comma-separated BCC recipients
`SMTP_USE_TLS`	`true`	Use STARTTLS (port 587)
`SMTP_USE_SSL`	`false`	Use SSL (port 465, overrides TLS)
`SMTP_SUBJECT`	`Grafana Dashboard Report`	Email subject prefix
`EMAIL_BODY_MESSAGE`		Custom email body (overrides default)
`NO_IMAGES_ACTION`	`notify`	`notify`, `skip`, or `fail`

[!NOTE] Email attachments are limited to 10 MB total size. If the combined size of all files exceeds this limit, the email will not be sent. Reduce the number of panels or screenshot resolution to stay under the limit.

Remote Copy (FILE_ONLY)

Variable	Default	Description
`SEND_IMG_TO_REMOTE`	`false`	Enable remote file copy
`REMOTE_COPY_PATH`		Destination: `user@host:/path` or `/local/path`
`REMOTE_COPY_METHOD`	`paramiko`	`paramiko` or `local`
`SSH_HOST_KEY_POLICY`	`warn`	SSH host key policy: `warn`, `reject`, or `auto`
`SSH_KEY_PATH`	(auto)	Path to SSH private key inside container (auto-mounted by `run_report.sh`)
`SSH_PASSWORD`		SSH password for password-based auth (alternative to key)
`SSH_PORT`	`22`	SSH port for paramiko connections

Retry & Timeout

Variable	Default	Description
`CAPTURE_RETRY_COUNT`	`2`	Retry attempts for failed captures
`CAPTURE_TIMEOUT`	`120`	Per-capture timeout in seconds (max 600)
`WAIT_AFTER_LOAD`	`5`	Wait after spinners disappear in seconds (max 300)

Docker Resource Limits

Variable	Default	Description
`DOCKER_MEMORY`	`1g`	Container memory limit (e.g. `512m`, `1g`, `2g`)
`DOCKER_CPUS`	`1.5`	Container CPU limit (e.g. `0.5`, `1`, `1.5`)

File Cleanup

Variable	Default	Description
`FILE_RETENTION_DAYS`	`7`	Delete files older than X days (0 = disabled)
`CLEANUP_ON_START`	`true`	Run cleanup before capture

Advanced

Variable	Default	Description
`SPINNER_SELECTORS`		Custom spinner CSS selectors
`WAIT_AFTER_LOAD`	`5`	Wait after spinners disappear (seconds)
`DEBUG_MODE`	`false`	Verbose logging

Security Best Practices

Never commit .env to Git — add to .gitignore
Use minimal Grafana role (Viewer) for service accounts
Rotate tokens and credentials regularly
Use HTTPS for Grafana, TLS/SSL for SMTP
Set GRAFANA_IGNORE_TLS_ERRORS=false when using valid TLS certificates
Set SSH_HOST_KEY_POLICY=reject for production SSH/SFTP transfers
Container runs as non-root user (appuser) by default
Container runs with --security-opt no-new-privileges

Paramiko SSH Setup (Remote File Transfer)

When using REMOTE_COPY_METHOD=paramiko, the tool connects to the remote server via SSH/SFTP. Authentication must be configured for this to work inside Docker.

How Authentication Works

The tool tries these methods in order:

Priority	Method	Configured by	Notes
1	SSH key file	`SSH_KEY_PATH`	Recommended. Auto-mounted by `run_report.sh`
2	Password	`SSH_PASSWORD`	Set in `.env`. Simple but less secure
3	Default keys	`~/.ssh/id_*`	Fallback. Unlikely inside Docker without mounts

Quickest Setup (Auto-Mount via run_report.sh)

If you have an SSH key on the host machine (~/.ssh/id_rsa, id_ed25519, or id_ecdsa), run_report.sh automatically mounts it into the container when REMOTE_COPY_METHOD=paramiko. No extra config needed:

# 1. Ensure your host user can SSH to the remote server:
ssh user@host    # test it manually first

# 2. Set .env:
REMOTE_COPY_METHOD=paramiko
REMOTE_COPY_PATH=user@host:/path/to/destination

# 3. Run — the key is auto-mounted:
./run_report.sh --env-file .env

If You Don’t Have an SSH Key

Generate one on the host machine and copy it to the remote server:

# Generate a key (on the Docker host):
ssh-keygen -t ed25519 -f ~/.ssh/id_ed25519 -N ""

# Copy it to the remote server:
ssh-copy-id -i ~/.ssh/id_ed25519.pub user@host

# Test the connection:
ssh user@host

Password Authentication

If SSH key auth isn’t an option, use password auth:

REMOTE_COPY_METHOD=paramiko
REMOTE_COPY_PATH=user@host:/remote/path
SSH_PASSWORD=your_ssh_password

Manual Docker Mount (Without run_report.sh)

If running Docker directly instead of via run_report.sh:

docker run --rm \
  -v /path/to/.env:/app/.env:ro \
  -v /path/to/captures:/app/captures \
  -v ~/.ssh/id_ed25519:/tmp/ssh_key:ro \
  -v ~/.ssh/known_hosts:/tmp/.ssh/known_hosts:ro \
  -e SSH_KEY_PATH=/tmp/ssh_key \
  -e HOME=/tmp \
  grafmail:latest

Host Key Verification

`SSH_HOST_KEY_POLICY`	Behavior
`warn` (default)	Accept unknown keys with a log message. Good for development
`reject`	Reject unknown keys. Requires pre-populated `known_hosts`
`auto`	Accept all keys silently. Not recommended for production

run_report.sh automatically mounts ~/.ssh/known_hosts into the container when using paramiko. For reject mode, the host must be present in this file.

To pre-populate known_hosts for reject mode:

ssh-keyscan -H host >> ~/.ssh/known_hosts

[!NOTE] The paramiko host key warnings (Unknown ssh-ed25519 host key for …) are automatically suppressed when SSH_HOST_KEY_POLICY=warn or auto. The tool logs its own clear messages instead.

Air-Gapped Deployment

For environments without internet access, follow this two-stage process:

1. Build & Package (Connected Machine)

Execute these commands on a machine with internet access:

# 1. Build the Docker image
docker build -t grafmail:latest .

# 2. Save the image to a tar file
docker save grafmail:latest -o grafmail.tar

2. Transfer to Air-Gapped PC

Transfer the following files using an approved method (USB, secure file transfer, etc.):

Required Shipment Items:

grafmail.tar — The Docker image (contains all code and Chromium)
run_report.sh — Runner script
.env — Configuration file template

3. Load and Run (Air-Gapped Machine)

On the target machine:

./run_report.sh --load-tar grafmail.tar --env-file .env

Troubleshooting

Issue	Solution
`SMTP connection refused`	Check `SMTP_HOST`/`SMTP_PORT`, firewall rules, use `DEBUG_MODE=true`
`Authentication failed`	Verify `GRAFANA_USERNAME`/`GRAFANA_PASSWORD` or service token
`No screenshots captured`	Check `CAPTURE_TIMEOUT`, increase `WAIT_AFTER_LOAD`, enable `DEBUG_MODE`
High memory usage	Reduce `DOCKER_MEMORY` or increase it; check `CAPTURE_RETRY_COUNT`
Container OOM killed	Increase `DOCKER_MEMORY` in .env (e.g. `2g`)
Empty captures directory	Check `GRAFANA_DASHBOARD_UID` is correct
`Total attachment size exceeds 10 MB`	Reduce panels or resolution; PDF mode merges all into one file
`SSH_HOST_KEY_POLICY=reject` error	Mount `known_hosts`: `-v ~/.ssh/known_hosts:/tmp/.ssh/known_hosts:ro`
`paramiko is not installed`	Should not occur with included Dockerfile; check `requirements.txt`
Permission errors	Check users, permission etc. In case of paramiko, turn to `warn` or `auto` mode with ssh key based authentication

📊 GrafMail - Grafana Dashboard Screenshot & Delivery Tool

📑 Table of Contents

Features

Architecture Overview

Project Structure

Quick Start

1. Configure

2. Build

3. Run

4. Cronjob

Multi-Dashboard Cronjob

5. Log rotation

Delivery Modes

SMTP_INTERNAL

FILE_ONLY

PDF Mode

Capture Organization

No-Images Behavior

Docker Networking

Docker Resource Limits

Configuration Reference

Grafana URL Breakdown

Grafana Connection

Panel & Capture

Screenshot Settings

Dashboard Rendering

Delivery Mode

SMTP Configuration (SMTP_INTERNAL)

Remote Copy (FILE_ONLY)

Retry & Timeout

Docker Resource Limits

File Cleanup

Advanced

Security Best Practices

Paramiko SSH Setup (Remote File Transfer)

How Authentication Works

Quickest Setup (Auto-Mount via run_report.sh)

If You Don’t Have an SSH Key

Password Authentication

Manual Docker Mount (Without run_report.sh)

Host Key Verification

Air-Gapped Deployment

1. Build & Package (Connected Machine)

2. Transfer to Air-Gapped PC

3. Load and Run (Air-Gapped Machine)

Troubleshooting

LICENSE

`SMTP_INTERNAL`

`FILE_ONLY`
